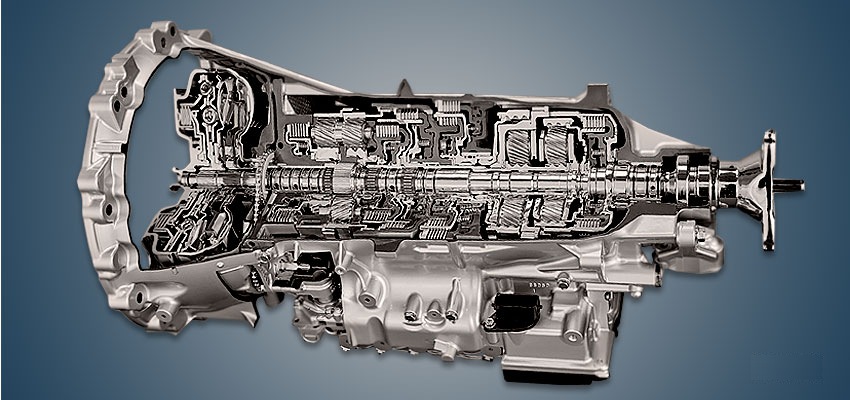

The Toyota AGA0F 10-speed automatic transmission has been produced by the company since 2017 and is installed on all-wheel drive versions of the Lexus LS500 together with the V35A-FTS unit. The version of this transmission for hybrid power units is known under the index L310F.
Specifications
| Type | automatic transmission |
| Number of gears | 10 |
| Type of drive | all wheel |
| Engine volume, l | up to 3.5 |
| Torque output, Nm | up to 650 |
| Recommended oil | Toyota ATF WS |
| Oil capacity, liter | 9.0 |
| Partial replacement, liter | 4.0 |
| Maintenance | every 60 000 km |
| Gearbox lifespan, km | ~400 000 km |
| Weight, kg | 135 |
Gear ratios Toyota AGA0F
Using a 2020 Lexus LS500 AWD with a 3.5 liter turbocharged engine as an example:
| Main | 2.937 |
| 1st | 4.923 |
| 2nd | 3.153 |
| 3rd | 2.349 |
| 4th | 1.879 |
| 5th | 1.462 |
| 6th | 1.193 |
| 7th | 1.000 |
| 8th | 0.792 |
| 9th | 0.640 |
| 10th | 0.598 |
| Reverse | 5.169 |
Using
The transmission was installed on:
- Lexus LS500 5 (XF50) since 2017.
Disadvantages of the Toyota AGA0F gearbox
- In the first years of production the automatic transmission was slow to shift between reverse and drive;
- Owners also often complained on forums about jerking during downshifts;
- But the 2018 and 2019 firmware updates fixed this and the gearbox no longer causes trouble;
- The main thing is to change the fluid regularly and the transmission will cover hundreds of thousands of kilometers;
- Keep the gearbox cooling system clean, as this greatly affects its service life.
Frequently asked questions about the Toyota AGA0F
What type of transmission is the Toyota AGA0F?
The Toyota AGA0F is a 10-speed automatic transmission for all-wheel drive cars.
How much torque can the Toyota AGA0F handle?
The Toyota AGA0F is designed for torque up to 650 Nm and engines up to 3.5 liters.
How much oil does the Toyota AGA0F take and which one?
The Toyota AGA0F takes 9.0 liters of oil (4.0 liters for a partial change). Recommended oil: Toyota ATF WS.
How often should the Toyota AGA0F be serviced?
Recommended service interval: every 60 000 km.
How long does the Toyota AGA0F last?
With proper maintenance, the Toyota AGA0F typically lasts about 400 000 km.
How much does the Toyota AGA0F weigh?
The Toyota AGA0F weighs about 135 kg.
What are the gear ratios of the Toyota AGA0F?
Using a 2020 Lexus LS500 AWD with a 3.5 liter turbocharged engine as an example: final drive 2.937, 1st 4.923, 2nd 3.153, 3rd 2.349, 4th 1.879, 5th 1.462, 6th 1.193, 7th 1.000, 8th 0.792, 9th 0.640, 10th 0.598, reverse 5.169.
What cars was the Toyota AGA0F installed on?
Lexus LS500 5 (XF50) since 2017.
What are the common problems of the Toyota AGA0F?
In the first years of production the automatic transmission was slow to shift between reverse and drive. Owners also often complained on forums about jerking during downshifts. All known problems.
