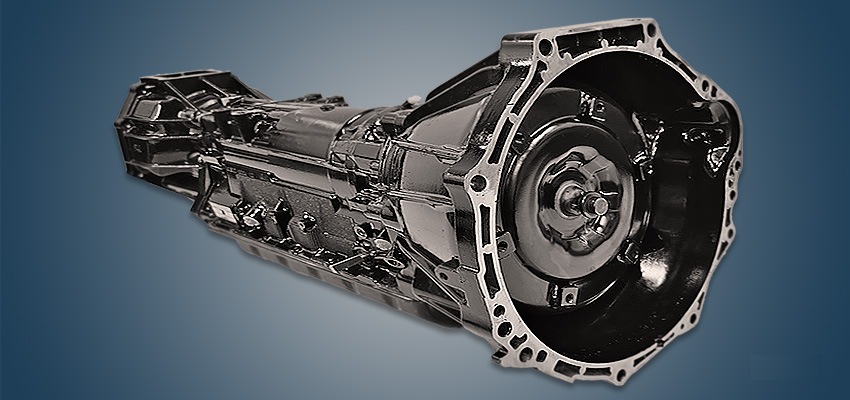

Gearbox Toyota A343F

The Toyota A343F 4-speed automatic transmission was assembled in Japan from 1989 to 2014 and was installed on especially large SUVs such as the Land Cruiser 100 and the related Lexus LX470. There are two versions of this automatic transmission: the standard AW30-43LE and the reinforced AW30-43LS.

Specifications

Type	automatic transmission
Number of gears	4
Type of drive	all wheel
Engine volume, l	up to 4.7
Torque output, Nm	up to 430
Recommended oil	Toyota ATF Type T-IV
Oil capacity, liter	12.3
Partial replacement, liter	2.5 *
Maintenance	every 60 000 km
Gearbox lifespan, km	~400 000 km
Weight, kg	83

* — with the oil pan removed, 4.5 liters

Gear ratios Toyota A343F

Using a 2000 Land Cruiser 100 with a 4.7 liter engine as an example:

Main	4.3
1st	2.804
2nd	1.531
3rd	1.000
4th	0.753
Reverse	2.393

Using

The transmission was installed on:

• Lexus LX450 1 (J80) in 1995 – 1998;
• Lexus LX470 2 (J100) in 1998 – 2002;
• Toyota 4Runner 2 (N120) in 1989 – 1995;
• Toyota 4Runner 3 (N180) in 1995 – 2002;
• Toyota 4Runner 4 (N210) in 2002 – 2009;
• Toyota Fortuner 1 (AN50) in 2004 – 2015;
• Toyota HiAce 4 (H100) in 1989 – 2004;
• Toyota HiAce 5 (H200) in 2004 – 2014;
• Toyota Hilux 5 (N80) in 1989 – 1997;
• Toyota Hilux 6 (N140) in 1997 – 2005;
• Toyota Land Cruiser 80 (J80) in 1990 – 1997;
• Toyota Land Cruiser 100 (J100) in 1998 – 2002;
• Toyota LC Prado 90 (J90) in 1996 – 2002;
• Toyota LC Prado 120 (J120) in 2002 – 2009;
• Toyota LC Prado 150 (J150) in 2009 – 2013.

Disadvantages of the Toyota A343F gearbox

• This is a robust gearbox, but it is fitted to large SUVs with powerful engines;
• That is why the service life of this transmission depends entirely on how it is driven;
• With an overly active owner the torque converter lockup clutch wears out before 200,000 km;
• The valve body then gets clogged with wear debris and the gearbox jerks and snatches;
• In the most neglected cases shaft vibrations destroy the oil pump bushing.
