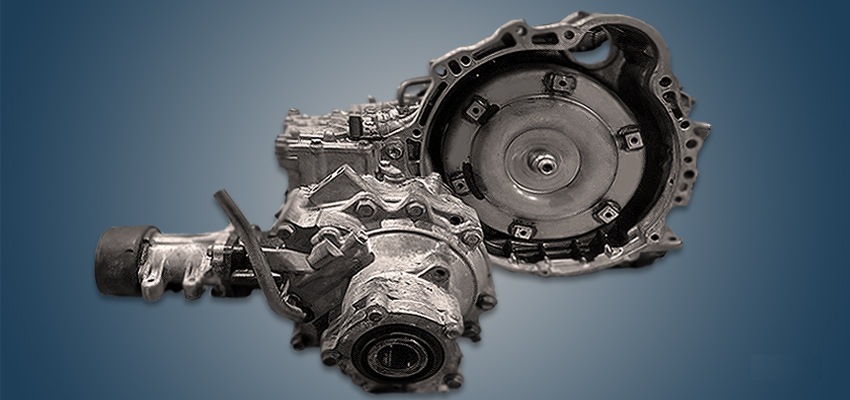

The Toyota A540H 4-speed automatic transmission was produced in Japan from 1988 to 2002 and was installed on all-wheel drive versions of such popular models as the Carina, Corona and Vista. In the vast majority of cases this gearbox was paired with the 2.0-liter 3S-FE engine.
Specifications
| Type | automatic transmission |
| Number of gears | 4 |
| Type of drive | all wheel |
| Engine volume, l | up to 2.0 |
| Torque output, Nm | up to 190 |
| Recommended oil | Toyota ATF Type T |
| Oil capacity, liter | 7.0 |
| Partial replacement, liter | 3.0 |
| Maintenance | every 60 000 km |
| Gearbox lifespan, km | ~350 000 km |
| Weight, kg | 120 |
Gear ratios Toyota A540H
Using a 1992 Toyota Vista with a 2.0 liter engine as an example:
| Main | 3.95 |
| 1st | 2.810 |
| 2nd | 1.549 |
| 3rd | 1.000 |
| 4th | 0.734 |
| Reverse | 2.296 |
Using
The transmission was installed on:
- Toyota Camry 2 (V20) in 1988 – 1991;
- Toyota Camry 3 (V30) in 1990 – 1994;
- Toyota Camry 4 (V40) in 1994 – 1998;
- Toyota Caldina 1 (T190) in 1992 – 2002;
- Toyota Carina 6 (T190) in 1992 – 1996;
- Toyota Carina 7 (T210) in 1996 – 2001;
- Toyota Corona 10 (T190) in 1992 – 1997;
- Toyota Corona 11 (T210) in 1996 – 2001;
- Toyota Ipsum 1 (XM10) in 1995 – 2001;
- Toyota RAV4 1 (XA10) in 1994 – 2000;
- Toyota Vista 2 (V20) in 1988 – 1991;
- Toyota Vista 3 (V30) in 1990 – 1994;
- Toyota Vista 4 (V40) in 1994 – 1998.
Disadvantages of the Toyota A540H gearbox
- A known problem of the early production automatic transmissions was failure of the reverse gear;
- Otherwise this is a very reliable gearbox and failures occur only at high mileage;
- It all starts with critical wear of the torque converter lockup clutch;
- The wear debris then clogs the valve body and jerking appears when shifting;
- Next, shaft vibrations destroy the oil pump bushing and lubricant leaks begin.
