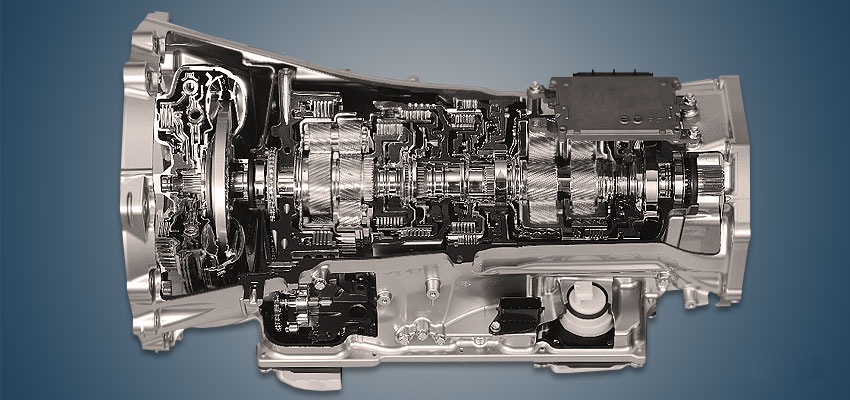

The Toyota AJA0E 10-speed automatic transmission, also known as the AWR10L65, has been produced since 2021 and is installed on rear-wheel drive versions of the Tundra and Sequoia with the 3.5-liter V35A-FTS turbocharged unit. The version of this transmission for hybrid power units is known under the index L4A0E.
Specifications
| Type | automatic transmission |
| Number of gears | 10 |
| Type of drive | rear |
| Engine volume, l | up to 3.5 |
| Torque output, Nm | up to 650 |
| Recommended oil | Toyota ATF WS |
| Oil capacity, liter | 11.1 |
| Partial replacement, liter | 5.0 |
| Maintenance | every 60 000 km |
| Gearbox lifespan, km | ~400 000 km |
| Weight, kg | 137 |
Gear ratios Toyota AJA0E
Using a 2022 Toyota Tundra with a 3.5 liter turbocharged engine as an example:
| Main | 3.307 |
| 1st | 4.923 |
| 2nd | 3.257 |
| 3rd | 2.349 |
| 4th | 1.944 |
| 5th | 1.532 |
| 6th | 1.193 |
| 7th | 1.000 |
| 8th | 0.801 |
| 9th | 0.661 |
| 10th | 0.613 |
| Reverse | 4.307 |
Using
The transmission was installed on:
- Toyota Sequoia 3 (XK80) since 2022;
- Toyota Tundra 3 (XK70) since 2021.
Disadvantages of the Toyota AJA0E gearbox
- This gearbox has been in production for several years and there are no serious complaints about it;
- Change the oil in the automatic transmission regularly and it will serve for hundreds of thousands of kilometers;
- It is also important to keep the cooling system clean, as this gearbox does not tolerate overheating.
Frequently asked questions about the Toyota AJA0E
What type of transmission is the Toyota AJA0E?
The Toyota AJA0E is a 10-speed automatic transmission for rear-wheel drive cars.
How much torque can the Toyota AJA0E handle?
The Toyota AJA0E is designed for torque up to 650 Nm and engines up to 3.5 liters.
How much oil does the Toyota AJA0E take and which one?
The Toyota AJA0E takes 11.1 liters of oil (5.0 liters for a partial change). Recommended oil: Toyota ATF WS.
How often should the Toyota AJA0E be serviced?
Recommended service interval: every 60 000 km.
How long does the Toyota AJA0E last?
With proper maintenance, the Toyota AJA0E typically lasts about 400 000 km.
How much does the Toyota AJA0E weigh?
The Toyota AJA0E weighs about 137 kg.
What are the gear ratios of the Toyota AJA0E?
Using a 2022 Toyota Tundra with a 3.5 liter turbocharged engine as an example: final drive 3.307, 1st 4.923, 2nd 3.257, 3rd 2.349, 4th 1.944, 5th 1.532, 6th 1.193, 7th 1.000, 8th 0.801, 9th 0.661, 10th 0.613, reverse 4.307.
What cars was the Toyota AJA0E installed on?
Toyota Sequoia 3 (XK80) since 2022; Toyota Tundra 3 (XK70) since 2021.
What are the common problems of the Toyota AJA0E?
This gearbox has been in production for several years and there are no serious complaints about it. Change the oil in the automatic transmission regularly and it will serve for hundreds of thousands of kilometers. All known problems.
