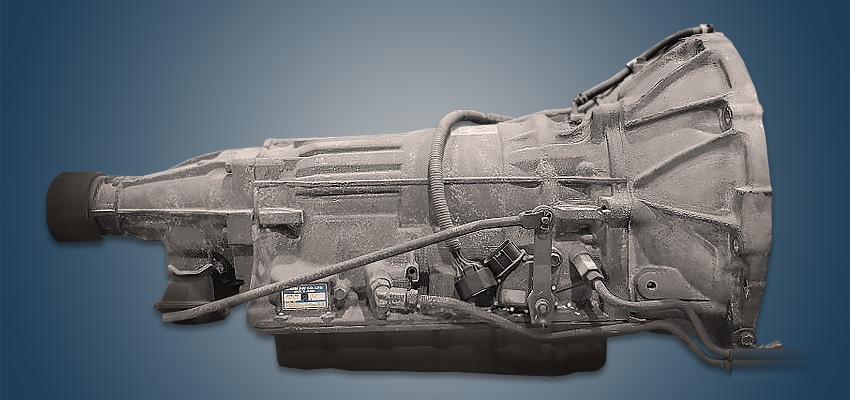

The Toyota A343E 4-speed automatic transmission has been produced by the company since 1990 and is installed on rear-wheel drive versions of pickups and vans such as the HiAce and Hilux. There is also a version of this gearbox for sports models with the 2.5-liter turbocharged 1JZ-GTE engine.
Specifications
| Type | automatic transmission |
| Number of gears | 4 |
| Type of drive | rear |
| Engine volume, l | up to 3.4 |
| Torque output, Nm | up to 380 |
| Recommended oil | Toyota ATF Type T-IV |
| Oil capacity, liter | 8.3 |
| Partial replacement, liter | 3.5 |
| Maintenance | every 60 000 km |
| Gearbox lifespan, km | ~400 000 km |
| Weight, kg | 80 |
Gear ratios Toyota A343E
Using a 2000 Toyota HiAce with a 3.4 liter engine as an example:
| Main | 3.909 |
| 1st | 2.804 |
| 2nd | 1.531 |
| 3rd | 1.000 |
| 4th | 0.753 |
| Reverse | 2.393 |
Using
The transmission was installed on:
- Lexus GS300 1 (S140) in 1991 – 1997;
- Toyota 4Runner 3 (N180) in 1995 – 2002;
- Toyota 4Runner 4 (N210) in 2002 – 2009;
- Toyota 4Runner 5 (N280) since 2009;
- Toyota Fortuner 1 (AN50) in 2004 – 2015;
- Toyota Innova 1 (AN40) in 2004 – 2015;
- Toyota HiAce 4 (H100) in 1995 – 2004;
- Toyota HiAce 5 (H200) in 2004 – 2019;
- Toyota Hilux 6 (N140) in 1997 – 2005;
- Toyota Hilux 7 (AN10) in 2004 – 2015.
Disadvantages of the Toyota A343E gearbox
- This is a reliable and durable gearbox and problems appear only at high mileage;
- Under overly active driving the torque converter lockup clutch wears out by 200,000 – 250,000 km;
- This debris then clogs the solenoids in the valve body and the automatic transmission starts jerking;
- Shaft vibrations appear next and quickly destroy the oil pump bushing;
- It is also important to watch the gearbox cooling, as overheating greatly shortens its service life.
