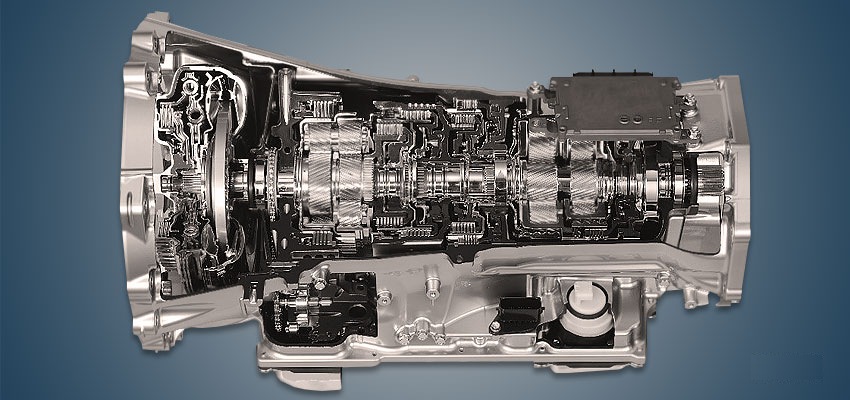

The Toyota AJA0F 10-speed automatic transmission, also known as the Direct Shift-10AT, has been produced by the company since 2021 and is installed on the Land Cruiser 300 and Lexus LX600 with the V35A-FTS turbocharged unit and the F33A-FTV diesel. The version of this transmission for hybrid power units is known under the index L4A0F.
Specifications
| Type | automatic transmission |
| Number of gears | 10 |
| Type of drive | all wheel |
| Engine volume, l | up to 3.5 |
| Torque output, Nm | up to 750 |
| Recommended oil | Toyota ATF WS |
| Oil capacity, liter | 11.4 |
| Partial replacement, liter | 5.0 |
| Maintenance | every 60 000 km |
| Gearbox lifespan, km | ~400 000 km |
| Weight, kg | 142 |
Gear ratios Toyota AJA0F
Using a 2022 Toyota Land Cruiser 300 with a 3.5 liter turbocharged engine as an example:
| Main | 3.307 |
| 1st | 4.923 |
| 2nd | 3.257 |
| 3rd | 2.349 |
| 4th | 1.944 |
| 5th | 1.532 |
| 6th | 1.193 |
| 7th | 1.000 |
| 8th | 0.801 |
| 9th | 0.661 |
| 10th | 0.613 |
| Reverse | 4.307 |
Using
The transmission was installed on:
- Lexus LX500d 4 (J310) since 2021;
- Lexus LX600 4 (J310) since 2021;
- Toyota Land Cruiser 300 (J300) since 2021;
- Toyota Sequoia 3 (XK80) since 2022;
- Toyota Tundra 3 (XK70) since 2021.
Disadvantages of the Toyota AJA0F gearbox
- This automatic transmission has been in production for several years and there are no serious complaints about it;
- Change the transmission fluid as often as possible and it will cover hundreds of thousands of kilometers;
- It is also important to keep the cooling system clean, as this greatly extends the life of the gearbox.
Frequently asked questions about the Toyota AJA0F
What type of transmission is the Toyota AJA0F?
The Toyota AJA0F is a 10-speed automatic transmission for all-wheel drive cars.
How much torque can the Toyota AJA0F handle?
The Toyota AJA0F is designed for torque up to 750 Nm and engines up to 3.5 liters.
How much oil does the Toyota AJA0F take and which one?
The Toyota AJA0F takes 11.4 liters of oil (5.0 liters for a partial change). Recommended oil: Toyota ATF WS.
How often should the Toyota AJA0F be serviced?
Recommended service interval: every 60 000 km.
How long does the Toyota AJA0F last?
With proper maintenance, the Toyota AJA0F typically lasts about 400 000 km.
How much does the Toyota AJA0F weigh?
The Toyota AJA0F weighs about 142 kg.
What are the gear ratios of the Toyota AJA0F?
Using a 2022 Toyota Land Cruiser 300 with a 3.5 liter turbocharged engine as an example: final drive 3.307, 1st 4.923, 2nd 3.257, 3rd 2.349, 4th 1.944, 5th 1.532, 6th 1.193, 7th 1.000, 8th 0.801, 9th 0.661, 10th 0.613, reverse 4.307.
What cars was the Toyota AJA0F installed on?
Lexus LX500d 4 (J310) since 2021; Lexus LX600 4 (J310) since 2021; Toyota Land Cruiser 300 (J300) since 2021; Toyota Sequoia 3 (XK80) since 2022; Toyota Tundra 3 (XK70) since 2021.
What are the common problems of the Toyota AJA0F?
This automatic transmission has been in production for several years and there are no serious complaints about it. Change the transmission fluid as often as possible and it will cover hundreds of thousands of kilometers. All known problems.
