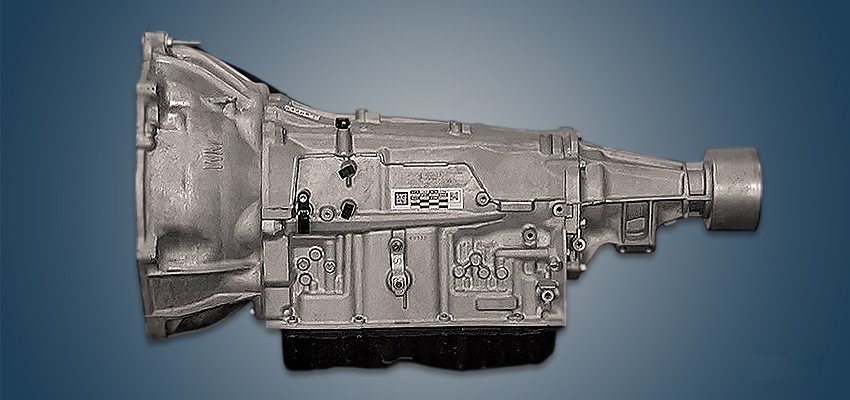

The Toyota AL80F 8-speed automatic transmission, also known as the Direct Shift-8AT, has been produced by the company since 2023 and is installed on the 4Runner and Land Cruiser Prado 250 with the T24A-FTS turbocharged engine or the 1GD-FTV diesel. The version of this transmission for hybrid power units is known under the index L580F.
Specifications
| Type | automatic transmission |
| Number of gears | 8 |
| Type of drive | all wheel |
| Engine volume, l | up to 3.5 |
| Torque output, Nm | up to 650 |
| Recommended oil | Toyota ATF WS |
| Oil capacity, liter | 12.5 |
| Partial replacement, liter | 4.5 |
| Maintenance | every 50 000 km |
| Gearbox lifespan, km | ~250 000 km |
Gear ratios Toyota AL80F
Using a 2025 Toyota Land Cruiser Prado 250 with a 2.8 liter diesel engine as an example:
| Main | 3.583 |
| 1st | 4.413 |
| 2nd | 2.808 |
| 3rd | 1.950 |
| 4th | 1.511 |
| 5th | 1.274 |
| 6th | 1.000 |
| 7th | 0.793 |
| 8th | 0.652 |
| Reverse | 3.646 |
Using
The transmission was installed on:
- Toyota 4Runner 6 (N500) since 2024;
- Toyota LC Prado 250 (J250) since 2023;
- Toyota Tacoma 4 (N400) since 2023.
Disadvantages of the Toyota AL80F gearbox
- This automatic transmission appeared relatively recently and failure statistics for it are minimal;
- Jerking and snatching on early production gearboxes was solved with firmware updates;
- There was also a recall campaign in the USA to replace oil contaminated with metal shavings;
- But the main problem is early engagement of the torque converter lockup;
- Because of this the oil gets dirty quickly and we recommend changing it as often as possible.
Frequently asked questions about the Toyota AL80F
What type of transmission is the Toyota AL80F?
The Toyota AL80F is an 8-speed automatic transmission for all-wheel drive cars.
How much torque can the Toyota AL80F handle?
The Toyota AL80F is designed for torque up to 650 Nm and engines up to 3.5 liters.
How much oil does the Toyota AL80F take and which one?
The Toyota AL80F takes 12.5 liters of oil (4.5 liters for a partial change). Recommended oil: Toyota ATF WS.
How often should the Toyota AL80F be serviced?
Recommended service interval: every 50 000 km.
How long does the Toyota AL80F last?
With proper maintenance, the Toyota AL80F typically lasts about 250 000 km.
What are the gear ratios of the Toyota AL80F?
Using a 2025 Toyota Land Cruiser Prado 250 with a 2.8 liter diesel engine as an example: final drive 3.583, 1st 4.413, 2nd 2.808, 3rd 1.950, 4th 1.511, 5th 1.274, 6th 1.000, 7th 0.793, 8th 0.652, reverse 3.646.
What cars was the Toyota AL80F installed on?
Toyota 4Runner 6 (N500) since 2024; Toyota LC Prado 250 (J250) since 2023; Toyota Tacoma 4 (N400) since 2023.
What are the common problems of the Toyota AL80F?
This automatic transmission appeared relatively recently and failure statistics for it are minimal. Jerking and snatching on early production gearboxes was solved with firmware updates. All known problems.
