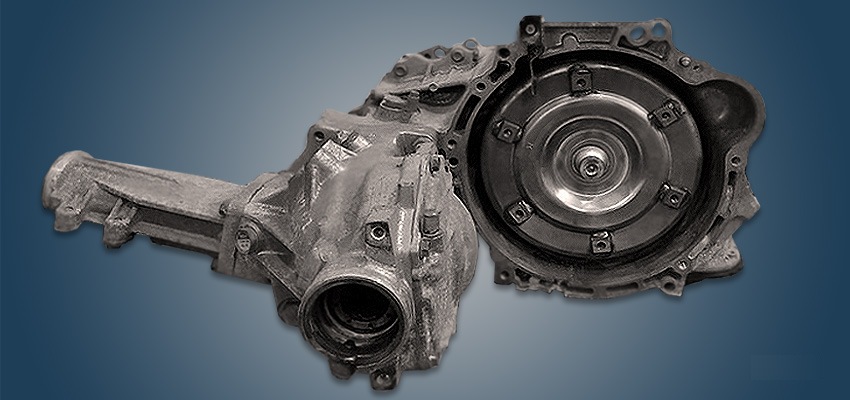

The Toyota U341F 4-speed automatic transmission was built at the company’s plant from 2000 to 2009 and was installed on the Matrix, Allion and Corolla Fielder together with the 1.8-liter 1ZZ-FE engine. On the Pontiac Vibe crossover this gearbox was fitted as the Aisin AW73-41LS.
Specifications
| Type | automatic transmission |
| Number of gears | 4 |
| Type of drive | all wheel |
| Engine volume, l | up to 1.8 |
| Torque output, Nm | up to 175 |
| Recommended oil | Toyota ATF Type T-IV since 2006 Toyota ATF WS |
| Oil capacity, liter | 6.4 |
| Partial replacement, liter | 2.7 |
| Maintenance | every 60 000 km |
| Gearbox lifespan, km | ~300 000 km |
| Weight, kg | 75 |
Gear ratios Toyota U341F
Using a 2005 Toyota Matrix with a 1.8 liter engine as an example:
| Main | 4.237 |
| 1st | 2.847 |
| 2nd | 1.552 |
| 3rd | 1.000 |
| 4th | 0.700 |
| Reverse | 2.343 |
Using
The transmission was installed on:
- Toyota Allion 1 (T240) in 2001 – 2007;
- Toyota Corolla Allex 1 (E120) in 2002 – 2006;
- Toyota Corolla Fielder 1 (E120) in 2001 – 2006;
- Toyota Corolla Spacio 2 (E120) in 2001 – 2007;
- Toyota Corolla Runx 1 (E120) in 2002 – 2006;
- Toyota Matrix 1 (E130) in 2002 – 2006;
- Toyota Opa 1 (XT10) in 2000 – 2005;
- Toyota Premio 1 (T240) in 2001 – 2007;
- Toyota Voltz 1 (E130) in 2002 – 2004;
- Toyota Wish 1 (AE10) in 2003 – 2009;
- Pontiac Vibe 1 (E130) in 2002 – 2008.
Disadvantages of the Toyota U341F gearbox
- This is a fairly reliable gearbox and problems occur only at high mileage;
- Under active driving the lockup clutch wears out and this debris clogs the solenoids;
- And if you drive for a long time with a worn clutch, the oil pump bushing will be destroyed;
- The weak point of all U-series automatic transmissions is the Teflon rings in the rear cover;
- After 200,000 km they often wear out and the oil pressure in the system drops;
- This gearbox also dislikes frequent hard starts, as the planetary gearsets may not hold up.
Frequently asked questions about the Toyota U341F
What type of transmission is the Toyota U341F?
The Toyota U341F is a 4-speed automatic transmission for all-wheel drive cars.
How much torque can the Toyota U341F handle?
The Toyota U341F is designed for torque up to 175 Nm and engines up to 1.8 liters.
How much oil does the Toyota U341F take and which one?
The Toyota U341F takes 6.4 liters of oil (2.7 liters for a partial change). Recommended oil: Toyota ATF Type T-IV; since 2006 Toyota ATF WS.
How often should the Toyota U341F be serviced?
Recommended service interval: every 60 000 km.
How long does the Toyota U341F last?
With proper maintenance, the Toyota U341F typically lasts about 300 000 km.
How much does the Toyota U341F weigh?
The Toyota U341F weighs about 75 kg.
What are the gear ratios of the Toyota U341F?
Using a 2005 Toyota Matrix with a 1.8 liter engine as an example: final drive 4.237, 1st 2.847, 2nd 1.552, 3rd 1.000, 4th 0.700, reverse 2.343.
What cars was the Toyota U341F installed on?
Toyota Allion 1 (T240) in 2001 – 2007; Toyota Corolla Allex 1 (E120) in 2002 – 2006; Toyota Corolla Fielder 1 (E120) in 2001 – 2006; Toyota Corolla Spacio 2 (E120) in 2001 – 2007; Toyota Corolla Runx 1 (E120) in 2002 – 2006; Toyota Matrix 1 (E130) in 2002 – 2006 and 5 more (see the full list above).
What are the common problems of the Toyota U341F?
This is a fairly reliable gearbox and problems occur only at high mileage. Under active driving the lockup clutch wears out and this debris clogs the solenoids. All known problems.
