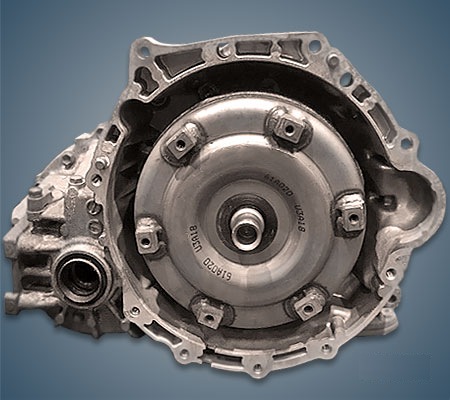

The Toyota U441E 4-speed automatic transmission was assembled in Japan from 1999 to 2015 and was installed on the Vitz, Probox and Yaris Verso together with the 1.3-liter 2NZ-FE and 2SZ-FE engines. In the Aisin range this transmission is known under its own index, AW81-40LE.
Specifications
| Type | automatic transmission |
| Number of gears | 4 |
| Type of drive | front |
| Engine volume, l | up to 1.3 |
| Torque output, Nm | up to 125 |
| Recommended oil | Toyota ATF Type T-IV |
| Oil capacity, liter | 5.6 |
| Partial replacement, liter | 2.5 |
| Maintenance | every 60 000 km |
| Gearbox lifespan, km | ~300 000 km |
| Weight, kg | 58 |
Gear ratios Toyota U441E
Using a 2003 Toyota Yaris Verso with a 1.3 liter engine as an example:
| Main | 4.375 |
| 1st | 2.875 |
| 2nd | 1.568 |
| 3rd | 1.000 |
| 4th | 0.697 |
| Reverse | 2.300 |
Using
The transmission was installed on:
- Toyota bB 1 (NCP30) in 2000 – 2005;
- Toyota Belta 1 (XP90) in 2005 – 2012;
- Toyota Corolla 9 (E120) in 2000 – 2007;
- Toyota Corolla Fielder 1 (E120) in 2000 – 2006;
- Toyota Echo 1 (XP10) in 1999 – 2006;
- Toyota FunCargo 1 (XP20) in 1999 – 2005;
- Toyota Ist 1 (XP60) in 2002 – 2007;
- Toyota Platz 1 (XP10) in 1999 – 2005;
- Toyota Porte 1 (NP10) in 2004 – 2012;
- Toyota Probox 1 (XP50) in 2002 – 2014;
- Toyota Yaris Verso 1 (XP20) in 1999 – 2005;
- Toyota Yaris 1 (XP10) in 1999 – 2005;
- Toyota Yaris 2 (XP90) in 2005 – 2010;
- Toyota Vios 1 (XP40) in 2002 – 2007;
- Toyota Vios 2 (XP90) in 2007 – 2013;
- Toyota Vitz 1 (XP10) in 1999 – 2004;
- Toyota Vitz 2 (XP90) in 2005 – 2010.
Disadvantages of the Toyota U441E gearbox
- On Toyota models this gearbox is paired with engines up to 1.3 liters and holds up well;
- Problems start after 200,000 km due to wear of the line pressure solenoid;
- The oil pressure in the system then starts to drop and the clutch packs begin to burn;
- At high mileage the oil pump seal also often leaks, which is dangerous for the gearbox;
- The rear cover problems typical of all U-series transmissions occur here as well.
Frequently asked questions about the Toyota U441E
What type of transmission is the Toyota U441E?
The Toyota U441E is a 4-speed automatic transmission for front-wheel drive cars.
How much torque can the Toyota U441E handle?
The Toyota U441E is designed for torque up to 125 Nm and engines up to 1.3 liters.
How much oil does the Toyota U441E take and which one?
The Toyota U441E takes 5.6 liters of oil (2.5 liters for a partial change). Recommended oil: Toyota ATF Type T-IV.
How often should the Toyota U441E be serviced?
Recommended service interval: every 60 000 km.
How long does the Toyota U441E last?
With proper maintenance, the Toyota U441E typically lasts about 300 000 km.
How much does the Toyota U441E weigh?
The Toyota U441E weighs about 58 kg.
What are the gear ratios of the Toyota U441E?
Using a 2003 Toyota Yaris Verso with a 1.3 liter engine as an example: final drive 4.375, 1st 2.875, 2nd 1.568, 3rd 1.000, 4th 0.697, reverse 2.300.
What cars was the Toyota U441E installed on?
Toyota bB 1 (NCP30) in 2000 – 2005; Toyota Belta 1 (XP90) in 2005 – 2012; Toyota Corolla 9 (E120) in 2000 – 2007; Toyota Corolla Fielder 1 (E120) in 2000 – 2006; Toyota Echo 1 (XP10) in 1999 – 2006; Toyota FunCargo 1 (XP20) in 1999 – 2005 and 11 more (see the full list above).
What are the common problems of the Toyota U441E?
On Toyota models this gearbox is paired with engines up to 1.3 liters and holds up well. Problems start after 200,000 km due to wear of the line pressure solenoid. All known problems.
