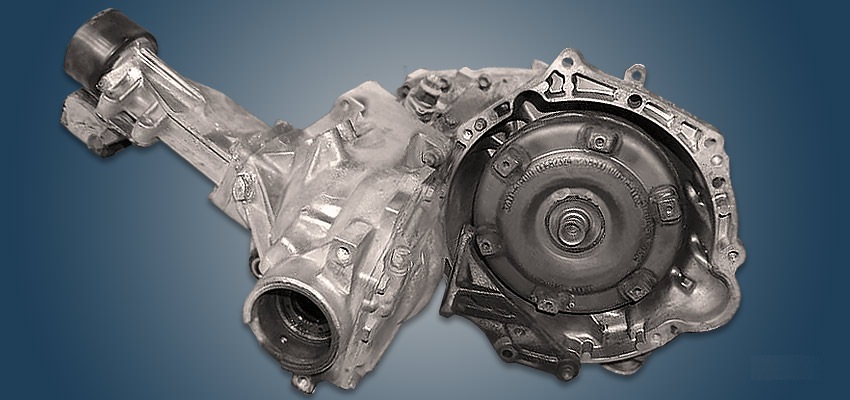

The Toyota U441F 4-speed automatic transmission was produced at the plant in Japan from 1999 to 2014 and was installed on all-wheel drive versions of such models as the Vitz, Platz, Ist and Probox. In the Aisin range this transmission is known under its own index, AW81-40LE.
Specifications
| Type | automatic transmission |
| Number of gears | 4 |
| Type of drive | all wheel |
| Engine volume, l | up to 1.3 |
| Torque output, Nm | up to 125 |
| Recommended oil | Toyota ATF Type T-IV |
| Oil capacity, liter | 5.6 |
| Partial replacement, liter | 2.5 |
| Maintenance | every 60 000 km |
| Gearbox lifespan, km | ~300 000 km |
| Weight, kg | 58 |
Gear ratios Toyota U441F
Using a 2007 Toyota Vitz with a 1.3 liter engine as an example:
| Main | 4.375 |
| 1st | 2.875 |
| 2nd | 1.568 |
| 3rd | 1.000 |
| 4th | 0.697 |
| Reverse | 2.300 |
Using
The transmission was installed on:
- Toyota Belta 1 (XP90) in 2005 – 2012;
- Toyota FunCargo 1 (XP20) in 1999 – 2005;
- Toyota Ist 1 (XP60) in 2000 – 2007;
- Toyota Platz 1 (XP10) in 1999 – 2005;
- Toyota Probox 1 (XP50) in 2002 – 2014;
- Toyota Succeed 1 (XP50) in 2002 – 2014;
- Toyota Vitz 1 (XP10) in 1999 – 2004;
- Toyota Vitz 2 (XP90) in 2005 – 2010.
Disadvantages of the Toyota U441F gearbox
- The service life of this automatic gearbox depends heavily on how the car is driven;
- With frequent wheelspin the line pressure solenoid wears out quickly;
- The oil pressure in the system then starts to drop and the clutch packs begin to burn;
- Closer to 200,000 km the oil pump seal often leaks, which is dangerous for the transmission;
- At high mileage the retainer of the main thrust bearing also often works loose;
- Vibrations then appear and destroy the bearings of the planetary gear train;
- The rear cover problems typical of U-series gearboxes also occur here.
