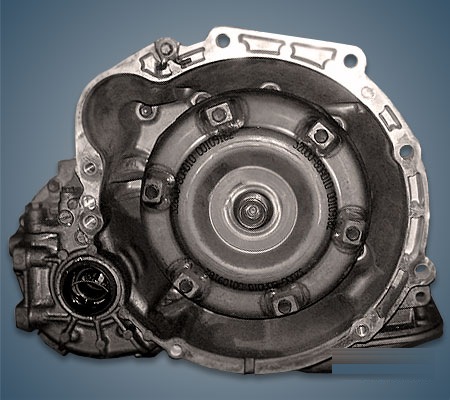

The Toyota U440E 4-speed automatic transmission was assembled at the plant in Japan from 1999 to 2005 and was installed on models such as the Vitz, Yaris and Platz together with the 1.0-liter 1SZ-FE engine. In the Aisin range this gearbox is known under its own index, AW80-40LE.
Specifications
| Type | automatic transmission |
| Number of gears | 4 |
| Type of drive | front |
| Engine volume, l | up to 1.0 |
| Torque output, Nm | up to 100 |
| Recommended oil | Toyota ATF Type T-IV |
| Oil capacity, liter | 5.6 |
| Partial replacement, liter | 2.5 |
| Maintenance | every 60 000 km |
| Gearbox lifespan, km | ~300 000 km |
| Weight, kg | 56 |
Gear ratios Toyota U440E
Using a 2001 Toyota Vitz with a 1.0 liter engine as an example:
| Main | 4.132 |
| 1st | 2.875 |
| 2nd | 1.568 |
| 3rd | 1.000 |
| 4th | 0.697 |
| Reverse | 2.300 |
Using
The transmission was installed on:
- Toyota Platz 1 (XP10) in 1999 – 2005;
- Toyota Yaris 1 (XP10) in 1999 – 2005;
- Toyota Vitz 1 (XP10) in 1999 – 2004.
Disadvantages of the Toyota U440E gearbox
- This gearbox is paired with a 1.0-liter engine and lasts much longer than the U441E;
- With calm owners who change the oil often, the transmission covers up to 300,000 km;
- After 250,000 km the line pressure solenoid usually wears out critically;
- The oil pressure in the system then drops and the clutch packs start to burn;
- At high mileage the oil pump seal often leaks, which is also dangerous for the gearbox;
- Problems with the rear cover and the thrust bearing are typical of the whole U-series.
Frequently asked questions about the Toyota U440E
What type of transmission is the Toyota U440E?
The Toyota U440E is a 4-speed automatic transmission for front-wheel drive cars.
How much torque can the Toyota U440E handle?
The Toyota U440E is designed for torque up to 100 Nm and engines up to 1.0 liters.
How much oil does the Toyota U440E take and which one?
The Toyota U440E takes 5.6 liters of oil (2.5 liters for a partial change). Recommended oil: Toyota ATF Type T-IV.
How often should the Toyota U440E be serviced?
Recommended service interval: every 60 000 km.
How long does the Toyota U440E last?
With proper maintenance, the Toyota U440E typically lasts about 300 000 km.
How much does the Toyota U440E weigh?
The Toyota U440E weighs about 56 kg.
What are the gear ratios of the Toyota U440E?
Using a 2001 Toyota Vitz with a 1.0 liter engine as an example: final drive 4.132, 1st 2.875, 2nd 1.568, 3rd 1.000, 4th 0.697, reverse 2.300.
What cars was the Toyota U440E installed on?
Toyota Platz 1 (XP10) in 1999 – 2005; Toyota Yaris 1 (XP10) in 1999 – 2005; Toyota Vitz 1 (XP10) in 1999 – 2004.
What are the common problems of the Toyota U440E?
This gearbox is paired with a 1.0-liter engine and lasts much longer than the U441E. With calm owners who change the oil often, the transmission covers up to 300,000 km. All known problems.
