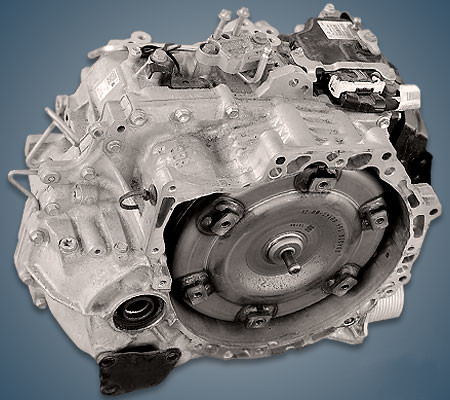

The Peugeot ATN8 or EAT8 8-speed automatic transmission has been assembled in Japan since 2017 and is installed in many popular front-wheel drive Peugeot, Citroën, Opel, and DS models. This transmission is a modification of the Aisin TG-80LS automatic transmission and is also known as the AWF8G30.
8-speed AT family: AMN8, ATN8.
Specifications
| Type | automatic transmission |
| Number of gears | 8 |
| Type of drive | front |
| Engine volume, l | up to 1.6 |
| Torque output, Nm | up to 300 |
| Recommended oil | Aisin AW-2 |
| Oil capacity, liter | 6.0 |
| Partial replacement, liter | 3.5 |
| Maintenance | every 60 000 km |
| Gearbox lifespan, km | ~300 000 km |
| Weight, kg | 84 |
Gear ratios Peugeot ATN8
Using the 2021 Peugeot 3008 with a 1.2 PureTech 130 engine as an example:
| Main | 4.070 |
| 1st | 5.250 |
| 2nd | 3.029 |
| 3rd | 1.950 |
| 4th | 1.457 |
| 5th | 1.221 |
| 6th | 1.000 |
| 7th | 0.809 |
| 8th | 0.673 |
| Reverse | 4.015 |
Using
The transmission was installed on:
- Citroen C4 III (C41) in 2020 – …;
- Citroen C4 Picasso II (B78) in 2018 – …;
- Citroen C5 Aircross I (C84) in 2019 – …;
- Citroen C5 X I in 2021 – …;
- Citroen Berlingo III (K9) in 2018 – …;
- DS DS3 II (D34) in 2018 – …;
- DS DS4 II (D41) in 2021 – …;
- DS DS7 I (X74) in 2017 – …;
- DS DS9 I (X83) in 2020 – …;
- Opel Astra L (C02) in 2021 – …;
- Opel Corsa F (P2JO) in 2019 – …;
- Opel Combo E (X19) in 2018 – …;
- Opel Grandland X (A18) in 2018 – …;
- Opel Mokka B (P2QO) in 2020 – …;
- Peugeot 208 II (P21) in 2019 – …;
- Peugeot 308 II (T9) in 2017 – 2021; 308 III (P5) in 2021 – …;
- Peugeot 508 II (R8) in 2018 – …;
- Peugeot Rifter I (K9) in 2018 – …;
- Peugeot 2008 II (P24) in 2018 – …;
- Peugeot 3008 II (P84) in 2018 – …;
- Peugeot 5008 II (P87) in 2018 – …
Disadvantages of the Peugeot ATN8 gearbox
- This is a reliable automatic transmission, and all its problems stem from a weak cooling system;
- The tiny heat exchanger quickly becomes clogged with dirt, and the automatic transmission begins to overheat;
- High temperatures destroy the Teflon rings, and the oil pressure drops;
- Then the clutch packs begin to burn, then the drums become damaged, and so on;
- And don’t forget to change the oil; the valve body is very sensitive to the cleanliness of the lubricant.
