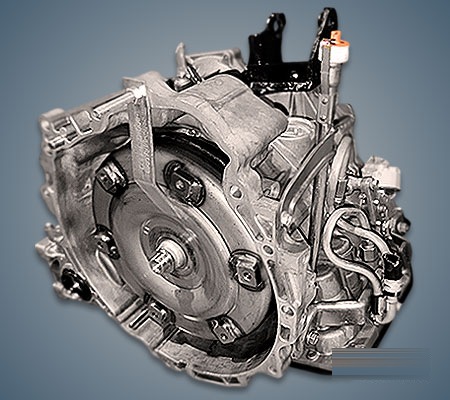

The Toyota A248E 4-speed automatic transmission was assembled in Japan from 2000 to 2004 and was installed on the Noah and Voxy minivans together with the 2.0-liter 1AZ-FSE power unit. All-wheel drive versions of these models received the similar A248F automatic transmission.
Specifications
| Type | automatic transmission |
| Number of gears | 4 |
| Type of drive | front |
| Engine volume, l | up to 2.0 |
| Torque output, Nm | up to 200 |
| Recommended oil | Toyota ATF Type T-IV |
| Oil capacity, liter | 7.8 |
| Partial replacement, liter | 3.5 |
| Maintenance | every 60 000 km |
| Gearbox lifespan, km | ~350 000 km |
| Weight, kg | 82 |
Gear ratios Toyota A248E
Using a 2003 Toyota Noah with a 2.0 liter engine as an example:
| Main | 3.034 |
| 1st | 4.005 |
| 2nd | 2.208 |
| 3rd | 1.425 |
| 4th | 0.981 |
| Reverse | 3.272 |
Using
The transmission was installed on:
- Toyota Nadia 1 (XN10) in 2000 – 2003;
- Toyota Noah 1 (R60) in 2001 – 2004;
- Toyota Voxy 1 (R60) in 2001 – 2004.
Disadvantages of the Toyota A248E gearbox
- This is a fairly reliable automatic transmission and problems occur only at high mileage;
- It all starts with critical wear of the torque converter lockup clutch;
- Its wear debris then seeps into the valve body and the gearbox starts jerking;
- Next, shaft vibrations destroy the oil pump bushing and lubricant leaks appear;
- After 250,000 km the rear output shaft bearing may also break up;
- The shaft then goes out of alignment and the planetary gearset simply falls apart;
- The broken wire in the solenoid coil, typical of the A-series, also occurs here.
