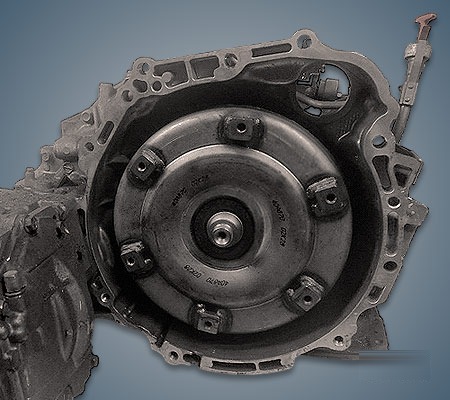

The Toyota A248F 4-speed automatic transmission was built at the Japanese plant from 2001 to 2009 and was installed on all-wheel drive versions of the Avensis, Caldina, Gaia, Nadia, Noah and Voxy. This gearbox was paired with the widely known 2.0-liter 1AZ-FSE petrol unit.
Specifications
| Type | automatic transmission |
| Number of gears | 4 |
| Type of drive | all wheel |
| Engine volume, l | up to 2.0 |
| Torque output, Nm | up to 195 |
| Recommended oil | Toyota ATF Type T-IV |
| Oil capacity, liter | 7.8 |
| Partial replacement, liter | 3.5 |
| Maintenance | every 60 000 km |
| Gearbox lifespan, km | ~350 000 km |
| Weight, kg | 83 |
Gear ratios Toyota A248F
Using a 2004 Toyota Avensis with a 2.0 liter engine as an example:
| Main | 3.034 |
| 1st | 4.005 |
| 2nd | 2.208 |
| 3rd | 1.425 |
| 4th | 0.981 |
| Reverse | 3.272 |
Using
The transmission was installed on:
- Toyota Avensis 2 (T250) in 2003 – 2009;
- Toyota Caldina 3 (T240) in 2002 – 2007;
- Toyota Gaia 1 (XM10) in 2002 – 2004;
- Toyota Nadia 1 (XN10) in 2002 – 2003;
- Toyota Noah 1 (R60) in 2001 – 2004;
- Toyota Vista 5 (V50) in 2002 – 2003;
- Toyota Voxy 1 (R60) in 2001 – 2004.
Disadvantages of the Toyota A248F gearbox
- A known problem of all A-series gearboxes is a broken wire in the solenoid coil;
- Otherwise the automatics transmissions of this family are very reliable and have a long service life;
- At high mileage heavy wear of the torque converter lockup clutch is common;
- This debris then clogs the valve body and the gearbox starts jerking when shifting;
- Next, vibrations destroy the oil pump bushing and oil leaks appear;
- Closer to 250,000 km the rear output shaft bearing can already be badly worn;
- This results in shaft misalignment and destruction of the third planetary gearset.
