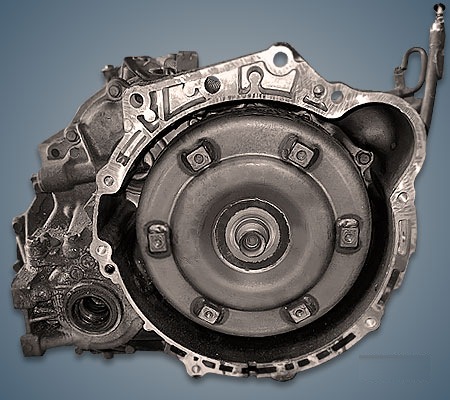

The Toyota A246E 4-speed automatic transmission was produced in Japan from 1992 to 2007 and was installed on such popular front-wheel drive models as the Avensis, Celica, Corolla and Matrix. On the Pontiac Vibe this gearbox was fitted under its own index, Aisin AW72-41LE.
Specifications
| Type | automatic transmission |
| Number of gears | 4 |
| Type of drive | front |
| Engine volume, l | up to 1.8 |
| Torque output, Nm | up to 175 |
| Recommended oil | Dexron III / Toyota T-IV |
| Oil capacity, liter | 7.2 |
| Partial replacement, liter | 3.5 |
| Maintenance | every 60 000 km |
| Gearbox lifespan, km | ~350 000 km |
| Weight, kg | 77 |
Gear ratios Toyota A246E
Using a 2005 Toyota Corolla with a 1.6 liter engine as an example:
| Main | 2.962 |
| 1st | 4.005 |
| 2nd | 2.208 |
| 3rd | 1.425 |
| 4th | 0.981 |
| Reverse | 3.272 |
Using
The transmission was installed on:
- Toyota Avensis 1 (T220) in 1997 – 2001;
- Toyota Celica 6 (T200) in 1993 – 1999;
- Toyota Corolla Levin 6 (E100) in 1992 – 1995;
- Toyota Corolla Levin 7 (E110) in 1995 – 2000;
- Toyota Corolla Spacio 1 (E110) in 1997 – 2001;
- Toyota Corolla Spacio 2 (E120) in 2001 – 2007;
- Toyota Corolla 9 (E120) in 2002 – 2007;
- Toyota Corolla USA 9 (E130) in 2002 – 2008;
- Toyota Corona 11 (T210) in 1996 – 2001;
- Toyota Matrix 1 (E130) in 2002 – 2007;
- Toyota Voltz 1 (E130) in 2002 – 2004.
Disadvantages of the Toyota A246E gearbox
- A known problem of A-series gearboxes is a broken wire in the solenoid coil;
- In every other respect these are fairly reliable automatics with a service life of over 300,000 km;
- Under excessively aggressive driving the torque converter lockup clutch can wear out;
- This debris then clogs the valve body and jerking appears when shifting;
- Next, shaft vibrations destroy the oil pump bushing and lubricant leaks begin;
- At high mileage the rear output shaft bearing can wear out;
- Because of this the shaft goes out of alignment and the third planetary gearset is destroyed.
