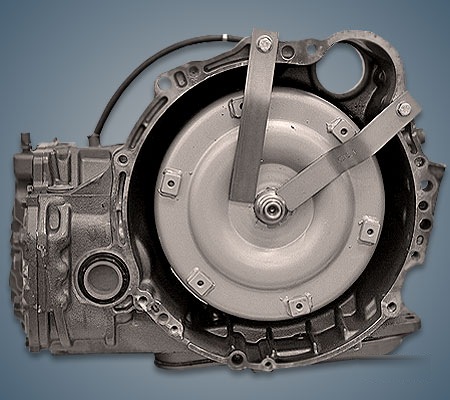

The Toyota A141E 4-speed automatic transmission was built at the company’s plant from 1984 to 1989 and was installed on the first-generation MR2, a mid-engine coupe popular on the Japanese market. The gearbox was paired both with the naturally aspirated 4A-GE engine and with the supercharged 4A-GZE unit.
Specifications
| Type | automatic transmission |
| Number of gears | 4 |
| Type of drive | rear |
| Engine volume, l | up to 2.0 |
| Torque output, Nm | up to 195 |
| Recommended oil | Dexron III |
| Oil capacity, liter | 5.6 |
| Partial replacement, liter | 2.5 |
| Maintenance | every 60 000 km |
| Gearbox lifespan, km | ~350 000 km |
| Weight, kg | 80 |
Gear ratios Toyota A141E
Using a 1988 Toyota MR2 with a 1.6 liter engine as an example:
| Main | 3.840 |
| 1st | 2.810 |
| 2nd | 1.549 |
| 3rd | 1.000 |
| 4th | 0.734 |
| Reverse | 2.296 |
Using
The transmission was installed on:
- Toyota MR2 1 (W10) in 1984 – 1989.
Disadvantages of the Toyota A141E gearbox
- First of all, it is worth noting that this is a rare gearbox, and finding a donor unit will be a problem;
- But its reliability is excellent, and failures occur only at high mileage;
- As always, it all starts after critical wear of the torque converter lockup clutch;
- Then the valve body gets clogged with wear debris and the transmission begins to jerk badly;
- After that, vibrations destroy the oil pump bushing and oil leaks appear.
