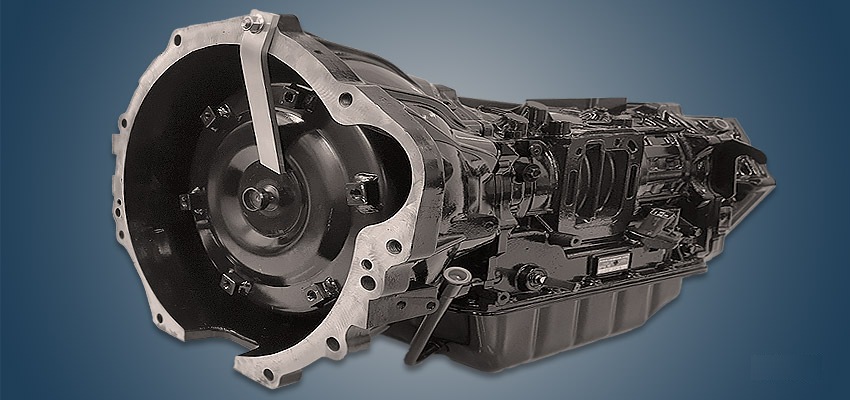

The Toyota A443F 4-speed automatic transmission was produced in Japan from 1995 to 2005 and was installed on the Mega Cruiser together with the 4.1-liter 15B-FTE diesel. There are also versions for special variants of the Land Cruiser 80 and 100, as well as for Dyna trucks.
Specifications
| Type | automatic transmission |
| Number of gears | 4 |
| Type of drive | all wheel |
| Engine volume, l | up to 4.1 |
| Torque output, Nm | up to 400 |
| Recommended oil | Toyota ATF D-II |
| Oil capacity, liter | 12.9 |
| Partial replacement, liter | 5.5 |
| Maintenance | every 80 000 km |
| Gearbox lifespan, km | ~500 000 km |
| Weight, kg | 153 |
Gear ratios Toyota A443F
Using a 2000 Toyota Mega Cruiser with a 4.1 liter diesel engine as an example:
| Main | 3.7 |
| 1st | 3.018 |
| 2nd | 1.548 |
| 3rd | 1.000 |
| 4th | 0.765 |
| Reverse | 2.678 |
Using
The transmission was installed on:
- Toyota Mega Cruiser 1 (XD20) in 1995 – 2001.
Disadvantages of the Toyota A443F gearbox
- First of all, this is a very rare automatic transmission and finding a donor unit is quite difficult;
- But the gearbox has no particular reliability problems and its service life is simply huge;
- Every 10–15 years of service it is advisable to replace the set of gaskets and oil seals;
- After all, most of the failed gearboxes suffered from low oil pressure;
- Under overly hard use the oil pump bushing may also be destroyed.
