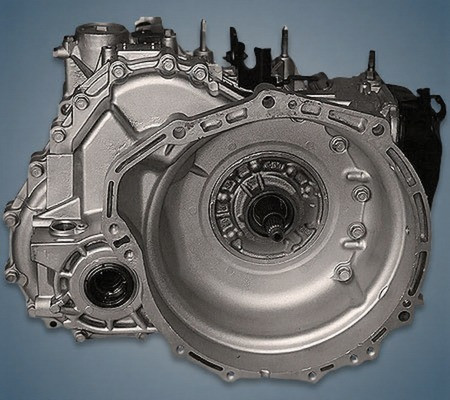

The Hyundai A5HF1 5-speed automatic transmission was assembled in Korea from 2003 to 2010 and installed in the Grandeur, Santa Fe, and Opirus models with powerful 3.3- and 3.8-liter V6 engines. This transmission was based on the Mitsubishi F5A51 automatic transmission, popular in the Japanese market.
A5 family: A5GF1, A5HF1, A5SR1, A5SR2.
Specifications
| Type | automatic transmission |
| Number of gears | 5 |
| Type of drive | front / all wheel |
| Engine volume, l | up to 3.8 |
| Torque output, Nm | up to 375 |
| Recommended oil | Hyundai ATF SP-III |
| Oil capacity, liter | 10.9 |
| Replacing the oil | every 60 000 km |
| Replacing the filter | every 120 000 km |
| Gearbox lifespan, km | ~220 000 km |
Gear ratios Hyundai-Kia A5HF1
Using the example of a 2007 Hyundai Grandeur with a 3.3 liter engine:
| Main | 3.333 |
| 1st | 3.789 |
| 2nd | 2.064 |
| 3rd | 1.421 |
| 4th | 1.034 |
| 5th | 0.728 |
| Reverse | 3.808 |
Using
The transmission was installed on:
- Hyundai Entourage 1 (EP) in 2006 – 2009;
- Hyundai Grandeur 4 (TG) in 2005 – 2009;
- Hyundai Equus 1 (LZ) in 2003 – 2009;
- Hyundai Santa Fe 2 (CM) in 2006 – 2010;
- Hyundai Sonata 5 (NF) in 2004 – 2010;
- Kia Carnival 2 (VQ) in 2005 – 2010;
- Kia Magentis 2 (MG) in 2005 – 2010;
- Kia Opirus 1 (GH) in 2003 – 2009;
- Kia Sorento 2 (XM) in 2009 – 2010.
Disadvantages of the Hyundai-Kia A5HF1 gearbox
- This is a very reliable automatic transmission, but its service life is highly dependent on operating conditions;
- For sedate drivers, these automatic transmissions last 200,000-250,000 km without any problems;
- Hard acceleration wears out the bushings, and then the vibrations destroy the oil pump;
- And abrupt starts and slippage can cause the planetary bearings to fall apart;
- And don’t forget to renew the transmission lubricant, otherwise wear debris will clog the valve body.
